MAG524
MAG524 – 4K-capable Linux set-top box
MAG524 and MAG524w3 are Linux devices powered by the Amlogic S905X2 chipset. With MAG524/524w3 and HUBTV priority technical support, operators can ensure that users have a seamless experience.
The ARM Cortex-A53 CPU makes the set-top box 25% more powerful than the previous generation devices. The CPU is equipped with the best GPU to ensure that MAG524/524w3 plays back 4K content even more efficiently at a frame rate of 60 fps.
The API continuity enables easy integration of devices into any project that already includes the MAG set-top boxes. HUBTV integrates MAG524 and MAG524w3 with any middleware and DRM/CAS on request.
Reliable set-top box powered by Linux 4.9
Powered by Linux, the device makes sure you can develop apps as well as offer integration and customization solutions. Operators can roll out new firmware to improve the device even after it is commercialized and to extend its life cycle.
MAG524 – 4K-capable Linux set-top box
Device for local and major operators
With MAG524/524w3, operators enable their audience to watch linear TV, video on demand, and other content. The set-top box plays files over the local network and from external media1. Operators launch projects with high-quality services, fast technical support, and branded UI/UX.

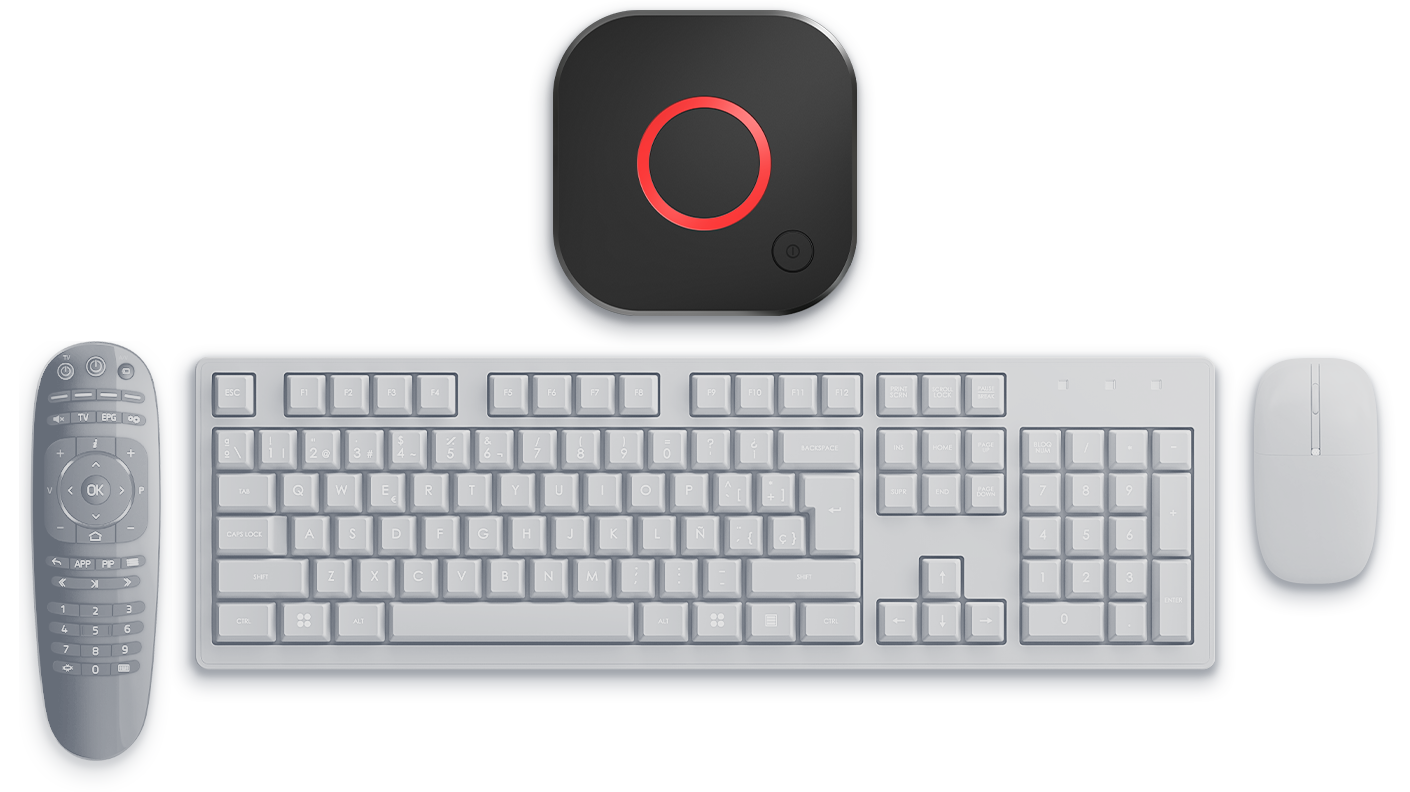

USB ports for your mouse and keyboard
MAG524/524w3 is equipped with two USB ports. This way, you can connect your mice, keyboards, memory cards, and other devices to the set-top box. Peripherals make it easier to enter text, use browsers, and find content.

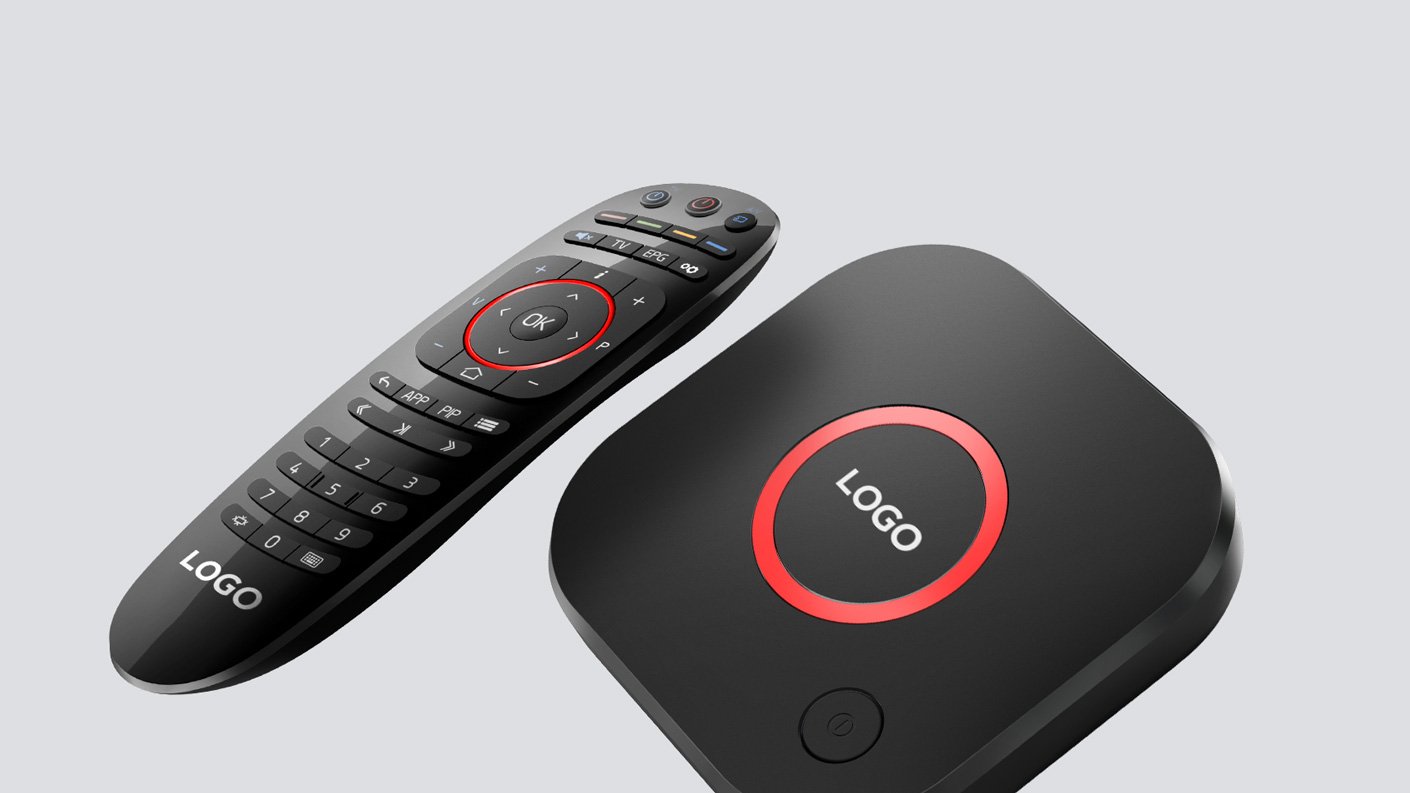

Customizable software, cases, packaging, and remote controls
HUBTV helps operators promote their brand. We customize the UI and software, brand cases, remote controls, and packaging for set-top boxes.
Specifications
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) |
| Audio codecs | MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
| Video codecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main [email protected] High 2160p@60 fps (optional), H.264 AVC [email protected] 2160p@30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVTT, closed captions |
| Playlist formats | M3U, M3U8, PLS, CUE |
| Operating system | Linux 4.9 |
| CAS/DRM | Upon request |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancements with operator’s apps, customization, or full replacement are available. |
| Digital ports | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | USB 2.0 × 1, USB 3.0 × 1 |
| Wi-Fi | Built-in 2T2R ac (MAG524w3 only) |
| Power adapter | DC 5 V, 2 A (DC 12 V, 1 А optional) |
| W/D/H | 115 × 115 × 28 mm |
| Weight | 170 g |
