MAG540
MAG540 – High-performance 4K STBs with a brand new ARM Cortex-A35 CPU
MAG540 and MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.
With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. HUBTV can integrate set-top boxes with CAS/DRM and middleware at the operator’s request.
A set-top box for operators and users worldwide
With MAG540/540w3, users can watch linear TV, video on demand, and content from IPTV/OTT providers.1 Also, the set-top box plays content within the local network and from external media. Operators can customize the device to give users a bespoke UI/UX and provide reliable technical support.
Device for local and major operators
Dolby Digital Plus™ surround sound
The device supports Dolby Digital Plus to provide clear eight-channel surround sound. The set-top box can be connected to seven speakers and a subwoofer. This way, the soundtracks get distributed in space, creating a surround sound effect and offering an immersive experience5.

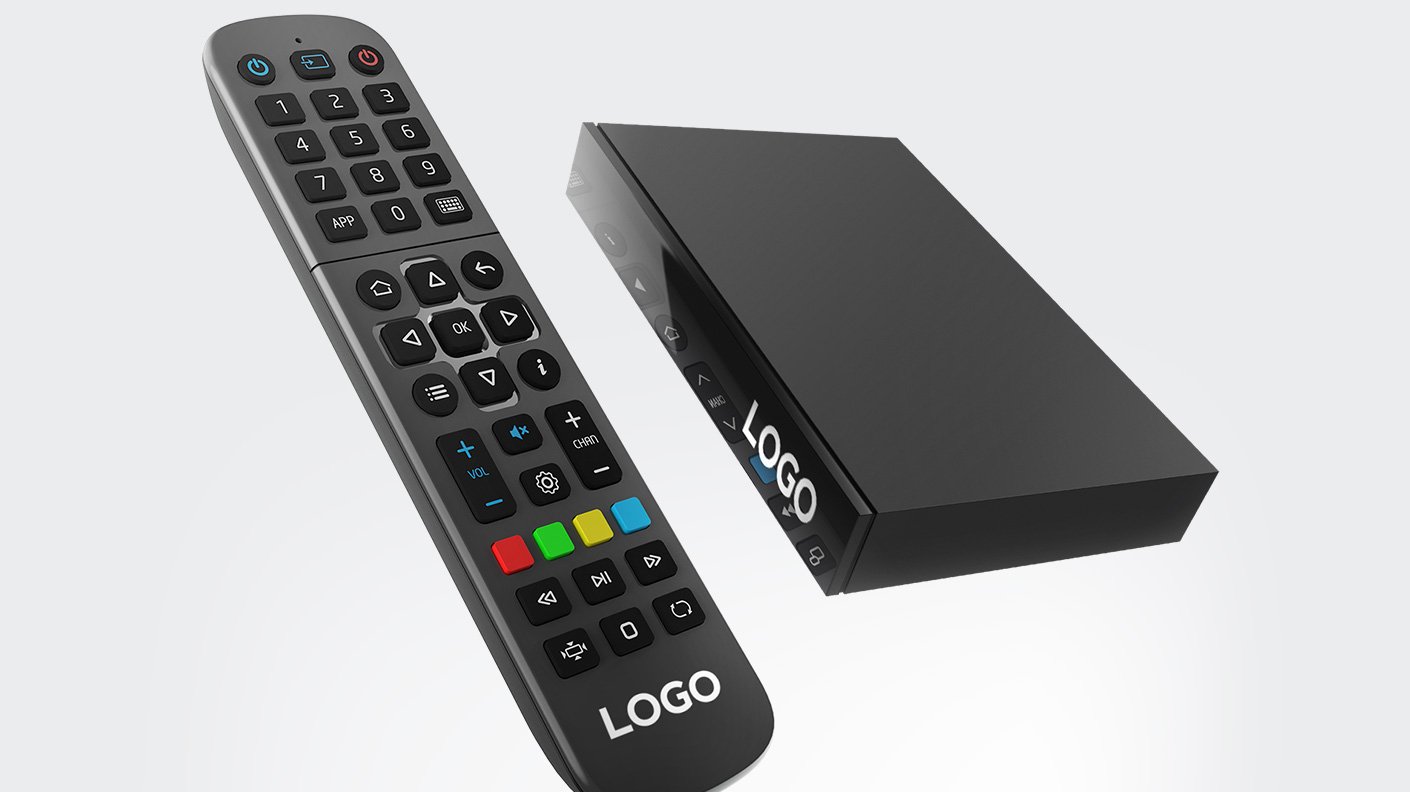

Customization and branding
Operators who want to personalize their set-top boxes enjoy customization services. Upon request, HUBTV can customize the software and place operator branding on the packaging, set-top boxes, and remote controls.
Specifications
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) |
| Audio codecs | MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
| Video codecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main [email protected] High 2160p@60 fps (optional), H.264 AVC [email protected] 2160p@30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVTT, closed captions |
| Playlist formats | M3U, M3U8, PLS, CUE |
| Operating system | Linux 4.9 |
| CAS/DRM | Upon request |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancements with operator’s apps, customization, or full replacement are available. |
| Digital ports | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | USB 2.0 × 1, USB 3.0 × 1 |
| Wi-Fi | Built-in 2T2R ac (MAG524w3 only) |
| Power adapter | DC 5 V, 2 A (DC 12 V, 1 А optional) |
| W/D/H | 120 × 78 × 21 mm |
| Weight | 110 g |
